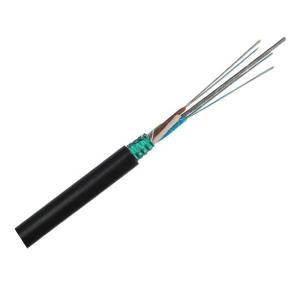

Distribution Cable Fiber Optic Patch Cord Single Mode 12/24/28/48/72/96 Core GYTS

Name: Distribution Cable Fiber Optic Patch Cord Single Mode 122428487296 Core GYTS
Brand: YOFC / Corning
Price: 1 USD

China Distribution Cable Fiber Optic Patch Cord Single Mode 12/24/28/48/72/96 Core GYTS wholesale

Brand Name : YOFC / Corning

Model Number : GYTS

Certification : ISO,RoHS , CE

Place of Origin : Shenzhen,China

MOQ : 1000 meters

Price : can be negotiated

Payment Terms : L/C, T/T, Western Union, MoneyGram,paypal

Supply Ability : 50000 m / day

Delivery Time : 2-7 working days

Packaging Details : opp bag + carton box

Products name : 12/ 24/ 28/ 48/ 72/ 96 core GYTS single mode fiber optic distribution cable

mode type : single mode

cable type : G652D/G657A1/G657A2

cable material : PVC/LSZH

delivery time : 2-7 working days after payment done

Warranty : 1 year after delivery

payment term : T/T , PAYPAL,WESTERN UNION ,30%deposit , balance paid before delivery

length : can be customized

core : 12 core

Contact Now

12/ 24/ 28/ 48/ 72/ 96 core GYTS single mode fiber optic distribution cable

Characteristics:

1.Excellent mechanical and temperature

performance guaranteed by the accurate excess Fiber length

2.Critical protection to fibers

3.The following measures are taken to ensure the

water blocking performance of the cable.

- Single steel wire used as the central strength member

- Special water-blocking filling compound in the loose tube.

- 100% cable core filling

Application: Duct/Aerial

Temperature Range:

Storing temperature:-40℃ to +70℃

Operating temperature:-40℃ to +70℃

Description:

In the GYTA/GYTS cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. An APL/PSP is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a PE sheath.

Distribution Cable Fiber Optic Patch Cord Single Mode 12/24/28/48/72/96 Core GYTS

Note:

1.Cables can be supplied with a range of single mode or multimode fibers.
2.The dimensions and raw materials can be designed according to the demand of the customers.

3.Standard Reel Length: 3000m/reel: other lengths available on request.

Technical Parameters:

G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20°C)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

operate temperature :

-20℃~+70℃

Cable construction details

Fiber type	Single mode: (1)9/125-G652D (2)9/125-G655 (3)9/125-G657A1,G657A2,G657B2,G657B3
Fiber type	Multimode: (4)50/125-OM2 (5)62.5/125-OM1 (6)50/125-OM3 (7)50/125-OM4 (8)50/125-OM5
Fiber brand	YOFC, Corning, OFS...
Connector type	SC, LC, FC, ST, E2K, MU, MTRJ, MPO/MTP, SMA, DIN

Distribution Cable Fiber Optic Patch Cord Single Mode 12/24/28/48/72/96 Core GYTS

Company View

Distribution Cable Fiber Optic Patch Cord Single Mode 12/24/28/48/72/96 Core GYTS

packing

Distribution Cable Fiber Optic Patch Cord Single Mode 12/24/28/48/72/96 Core GYTS

Advantage

Distribution Cable Fiber Optic Patch Cord Single Mode 12/24/28/48/72/96 Core GYTS

Certificate

Distribution Cable Fiber Optic Patch Cord Single Mode 12/24/28/48/72/96 Core GYTS

shiping and payment

Distribution Cable Fiber Optic Patch Cord Single Mode 12/24/28/48/72/96 Core GYTS
